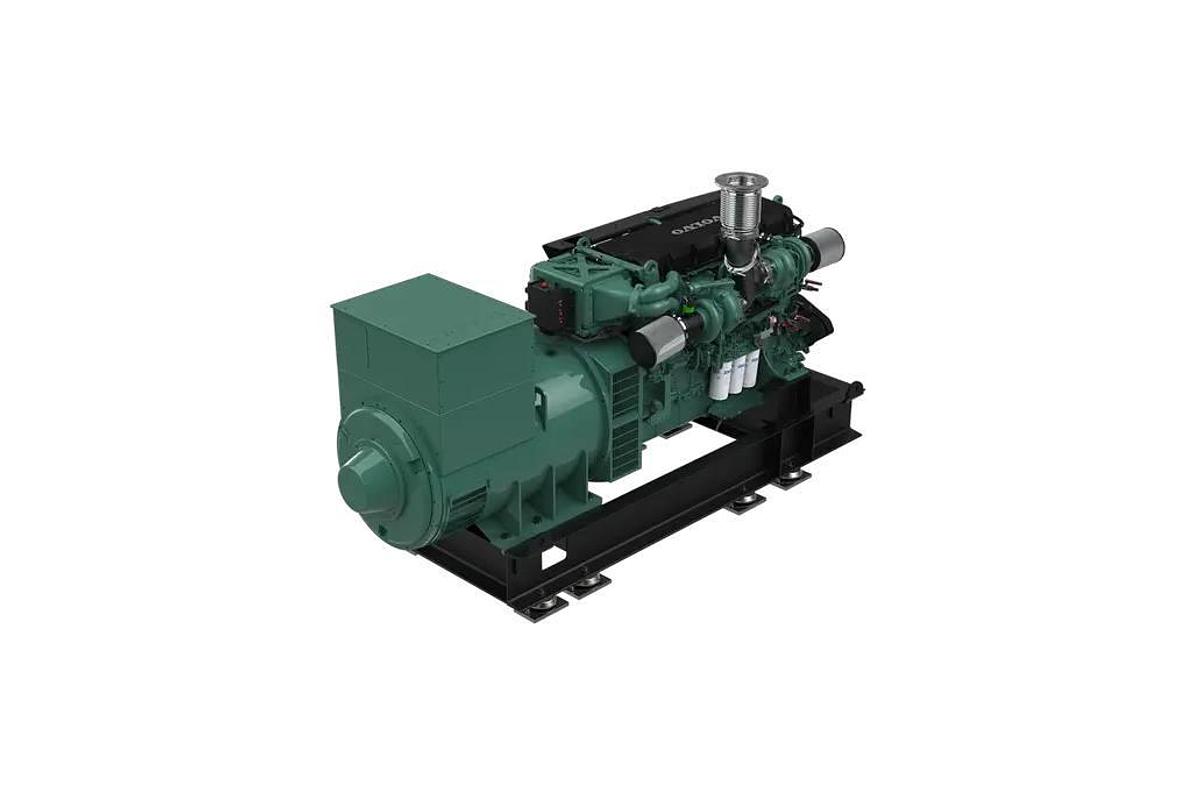

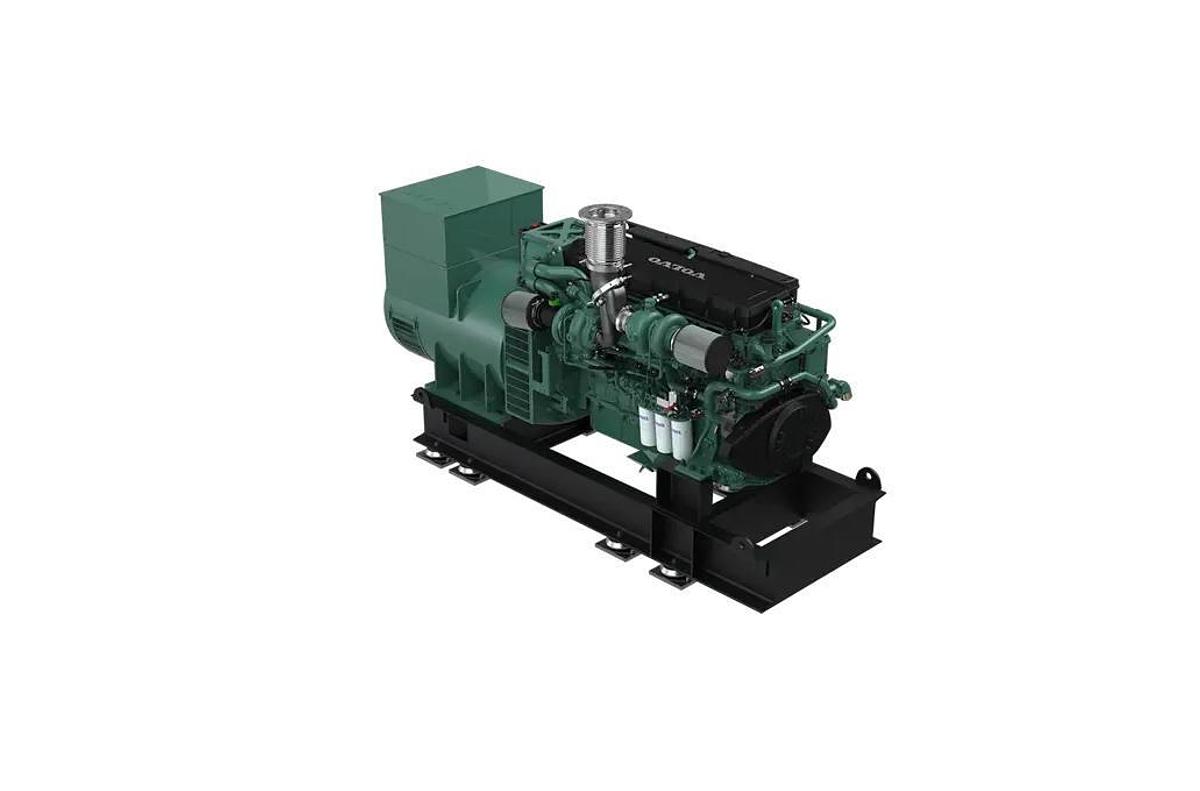

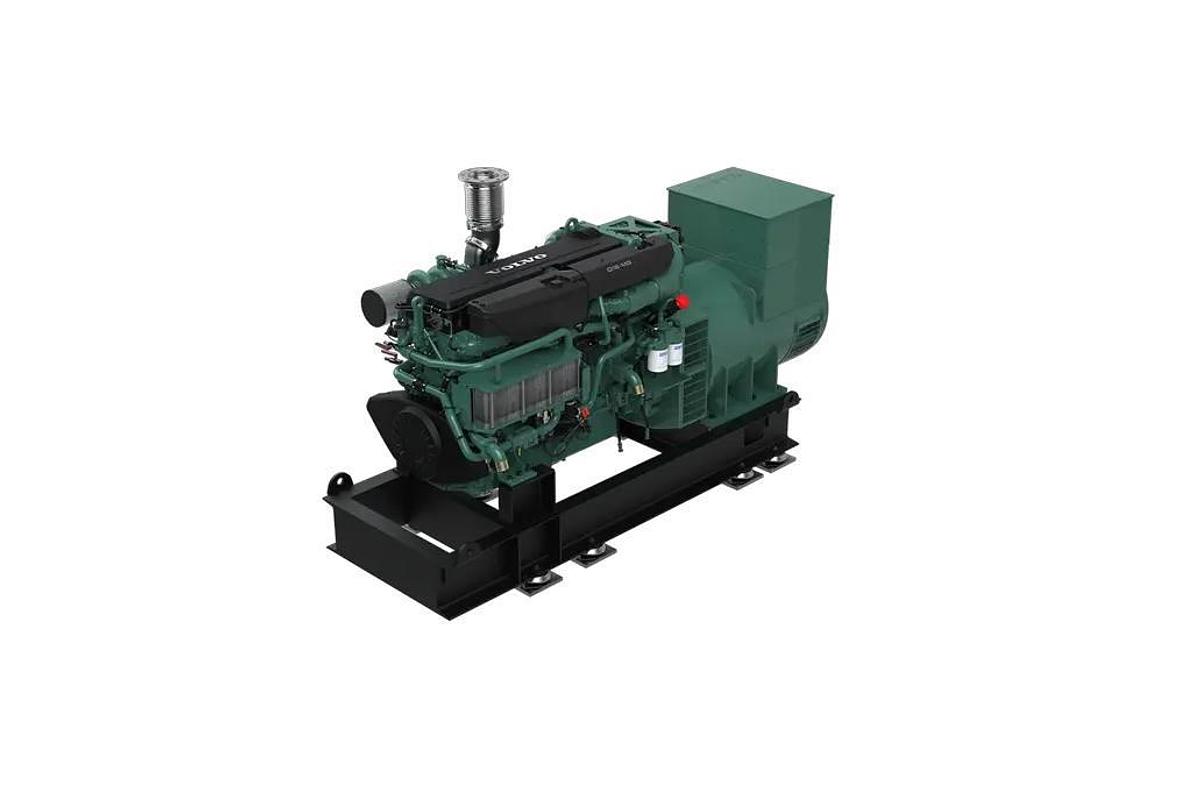

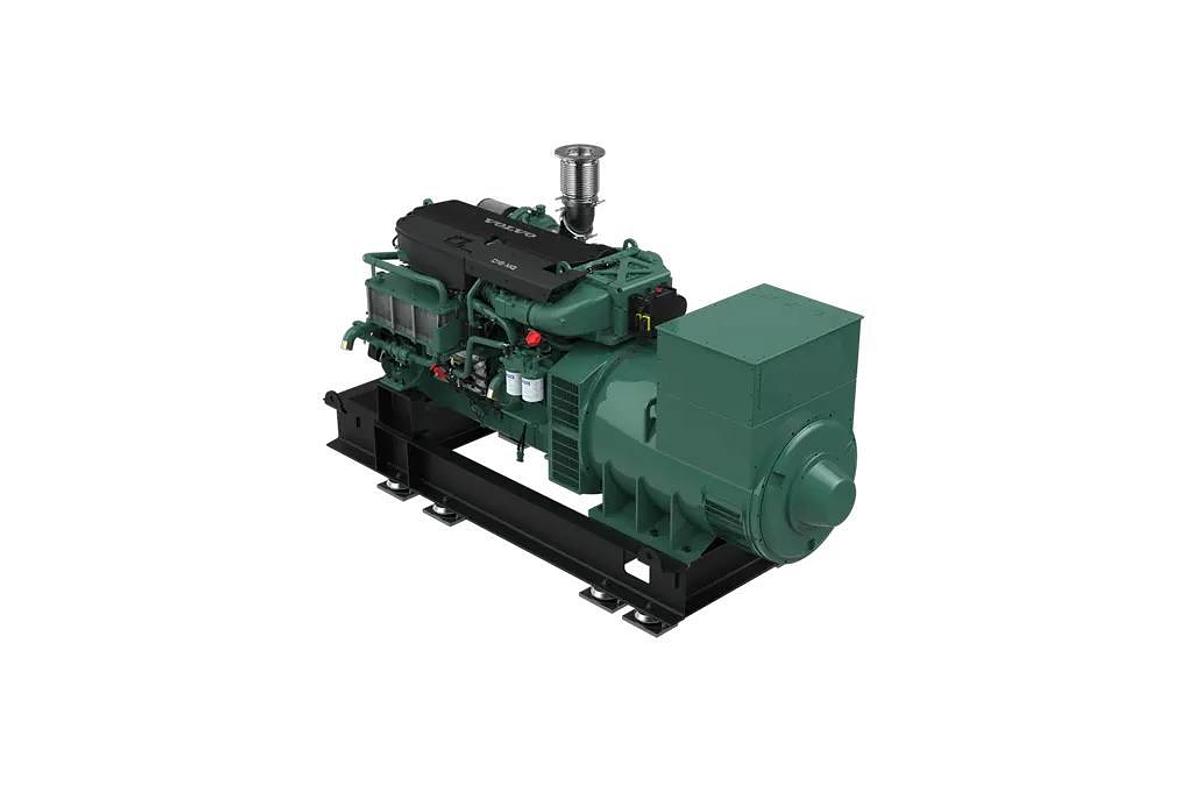

Volvo Penta D16 MG is available in 50 Hz and 60 Hz. In-line 6-cylinder, 16.1-liter direct-injected complete marine diesel generator set with twin-entry turbo and aftercooler. Available in F and H class.
D16 MG HE KC 390 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 470 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 478 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesFeatures & Benefits
The complete solution: The Volvo Penta Genset system is the complete solution for a ship’s onboard power requirements. It comes complete with engine, generator and monitoring system, all tested and ready for installation onboard. Engine and generators are type approved by major classification societies. The genset can be delivered with complete classification certificates.Reliable and powerful: The engine’s robust design with a ladder frame bolted to the engine block makes it highly reliable. Its rigid in-line cylinder block with generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and turbo provide a powerful engine.Easy installation – service friendly: Designed to withstand high exhaust back pressure, this genset is easy to install and perfect for installations that require additional, third-part emission control equipment. Its good accessibility also facilitates service and maintenance.High fuel efficiency and low on emissions: By controlling the unit injectors and fuel distribution, the EMS electronic management system optimizes the fuel-air mixture leading to improved combustion. The result is high thermal efficiency, high fuel efficiency and reduced exhaust emissions.Superior load-taking capability: Together, the twin-entry turbo with pulse charging, and the highly efficient speed control system give this engine superior load-taking capability.Marine Commercial Control System: Volvo Penta Marine Commercial Control System is an engine control and monitoring system that is easily integrated into the ship’s control system. All actions are displayed with text messages, in any specified language, and logged in a non-erasable memory.Key Features
Excellent monitoring with Volvo Penta Marine Commercial Control SystemTwin-entry turbo with pulse chargingEMS electronic control system for optimized fuel efficiencyPTO capabilityApproved by major classification societiesVolvo Penta D16 MG is available in 50 Hz and 60 Hz. In-line 6-cylinder, 16.1-liter direct-injected complete marine diesel generator set with twin-entry turbo and aftercooler. Available in F and H class.
D16 MG HE KC 390 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 470 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 478 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesFeatures & Benefits
The complete solution: The Volvo Penta Genset system is the complete solution for a ship’s onboard power requirements. It comes complete with engine, generator and monitoring system, all tested and ready for installation onboard. Engine and generators are type approved by major classification societies. The genset can be delivered with complete classification certificates.Reliable and powerful: The engine’s robust design with a ladder frame bolted to the engine block makes it highly reliable. Its rigid in-line cylinder block with generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and turbo provide a powerful engine.Easy installation – service friendly: Designed to withstand high exhaust back pressure, this genset is easy to install and perfect for installations that require additional, third-part emission control equipment. Its good accessibility also facilitates service and maintenance.High fuel efficiency and low on emissions: By controlling the unit injectors and fuel distribution, the EMS electronic management system optimizes the fuel-air mixture leading to improved combustion. The result is high thermal efficiency, high fuel efficiency and reduced exhaust emissions.Superior load-taking capability: Together, the twin-entry turbo with pulse charging, and the highly efficient speed control system give this engine superior load-taking capability.Marine Commercial Control System: Volvo Penta Marine Commercial Control System is an engine control and monitoring system that is easily integrated into the ship’s control system. All actions are displayed with text messages, in any specified language, and logged in a non-erasable memory.Key Features
Excellent monitoring with Volvo Penta Marine Commercial Control SystemTwin-entry turbo with pulse chargingEMS electronic control system for optimized fuel efficiencyPTO capabilityApproved by major classification societiesVolvo Penta D16 MG is available in 50 Hz and 60 Hz. In-line 6-cylinder, 16.1-liter direct-injected complete marine diesel generator set with twin-entry turbo and aftercooler. Available in F and H class.
D16 MG HE KC 390 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 470 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesD16 MG HE KC 478 kWe Technical Specifications
Fuel Type: DieselDisplacement litres: 16.1 litresDisplacement cui: 984 in³Number of Cylinders: 6Control System: Marine Commercial Control, Open CAN InterfaceHigh-pressure fuel injection: Electronic unit injectorsCooling System: Heat Exchanger Cooling, Keel CoolingProductSeries: 16 liter seriesFeatures & Benefits
The complete solution: The Volvo Penta Genset system is the complete solution for a ship’s onboard power requirements. It comes complete with engine, generator and monitoring system, all tested and ready for installation onboard. Engine and generators are type approved by major classification societies. The genset can be delivered with complete classification certificates.Reliable and powerful: The engine’s robust design with a ladder frame bolted to the engine block makes it highly reliable. Its rigid in-line cylinder block with generously dimensioned crankshaft bearings, water-cooled exhaust manifold, and turbo provide a powerful engine.Easy installation – service friendly: Designed to withstand high exhaust back pressure, this genset is easy to install and perfect for installations that require additional, third-part emission control equipment. Its good accessibility also facilitates service and maintenance.High fuel efficiency and low on emissions: By controlling the unit injectors and fuel distribution, the EMS electronic management system optimizes the fuel-air mixture leading to improved combustion. The result is high thermal efficiency, high fuel efficiency and reduced exhaust emissions.Superior load-taking capability: Together, the twin-entry turbo with pulse charging, and the highly efficient speed control system give this engine superior load-taking capability.Marine Commercial Control System: Volvo Penta Marine Commercial Control System is an engine control and monitoring system that is easily integrated into the ship’s control system. All actions are displayed with text messages, in any specified language, and logged in a non-erasable memory.Key Features
Excellent monitoring with Volvo Penta Marine Commercial Control SystemTwin-entry turbo with pulse chargingEMS electronic control system for optimized fuel efficiencyPTO capabilityApproved by major classification societies
