Description
Welcome to Navigate
This model has two distinct bedroom configurations.

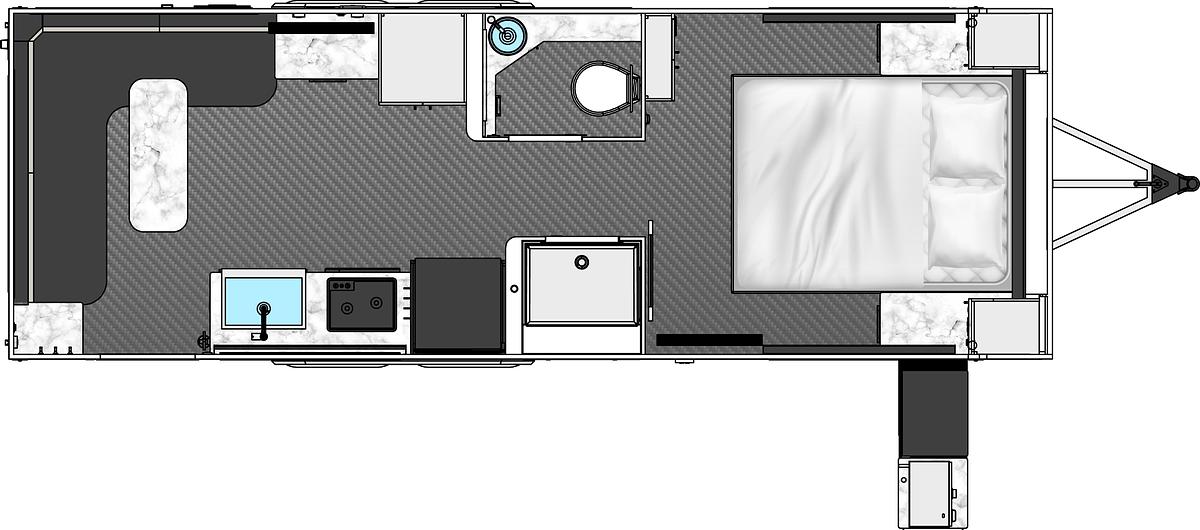

STANDARD QUEEN BED

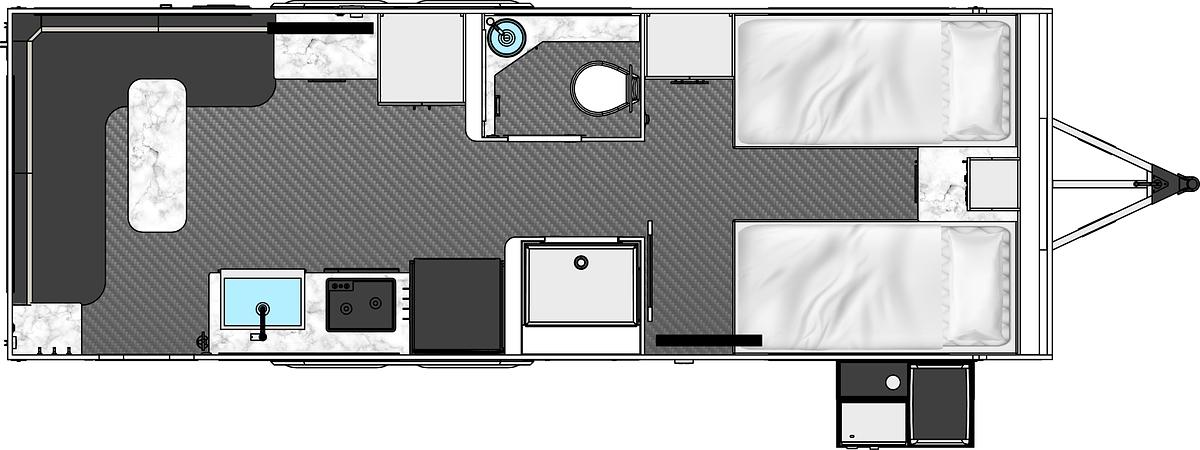

OPTIONAL TWIN BEDS
Specifications
| Manufacturer | inTech |
| Model | Navigate |
| Condition | New |
| Exterior Width | 8' 3" |
| Exterior Height | 10' 6" |
| Exterior Length | 27' 1" |
| Dry Weight | 5,900 lbs |
| Tongue Weight | 700 lbs |
| GVWR | 7,500 lbs |
| Net Carrying Capacity | 1600 lbs |
| Ball Height | 26" |
| Sleeps Capacity | 4 - 5 |
| Fresh Water Capacity | 44 Gallons |
| Gray Water Capacity | 39 Gallons |
| Black Water Capacity | 39 Gallons |
| Holding Tank Heating | Enclosed w/ Ducted Heat, 12V Line Heaters, & Tank Heat Pads |
| Under Belly | Enclosed |
| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Shore Power Inlet | 30 Amp - 120 V |
| Solar Prep | Pre-Wired Solar Port on Side Wall & Roof |
| Exterior Walls | Hung .040 Aluminum (Wood Free) |
| Roof | One-Piece Aluminum |
| Insulation | Comfort Shell Insulation |
| LP Tank | (2) 20 lbs Tanks |
| LP Quick Connect Port | 1 |
| Entry Step | inTech SureStep |
| Tongue Jack | 12V Electric Power Jack |
| Awning | 18' Power Lateral Arm w/ Motion Sensor |
| Backup Camera | Pre-Wired |
| Spare Tire | Full Size - Front Mounted |
| Countertops | Thinscape Solid Surface |
| Sink | Farmhouse Undermounted Sink w/ Thinscape Sink Covers |
| Faucet | Pullout Spray Faucet |
| Dinette | L - Shaped Dinette |
| Dinette Table | Solid Hardwood Maple Table - Black |
| Cabinets | European Style Flush Cabinets w/ Soft Close Hinges & Drawer Slides |
| SubFloor | Solid NoFlex 3/4" Floor |
| Flooring | Premium Woven Floor |
| Baggage Doors | Locking Doors w/ Slam Latches |
| Bedroom Privacy Door | Solid Hardwood Maple Barn Door - Black |
| Window Style | Frameless |
| Window Valance | inTech Aluminum Valance System w/ Integrated Accent Lighting |
| Window Covering | Blackout Roll Shades |
| Refrigerator | 10 Cu Ft w/ 12V Compressor |
| Cooktop | 3 Burner LP Cooktop w/ Glass Cover |
| Microwave | 1.1 Cu Ft Convection Microwave |
| Water Heater | On Demand LP |
| Furnace | 25K BTU Ducted LP Furnace |
| A/C | 15K BTU Low Profile Ducted w/ Soft Start |
| Exhaust Fan | (2) Multi-Speed / (2) Single Speed for Shower and Bathroom |
| TV | 32" TV's in Living & Bedroom Areas |
| Stereo | Bluetooth Stereo w/ 4 Interior Speakers |
| Master Bed | 60" x 80" Queen Bed w/ 6" Memory Foam Mattress |
| Drop-Down Bunk Bed | 32" x 74" (Weight Capacity: 175 lbs) |
| Bathroom Style | Split Dry Bath |
| Bathroom Sink | Hand Sink w/ Brushed Nickel Faucet |
| Bathroom Mirror | Frameless Backlit Mirror |
| Toilet | Porcelain Toilet w/ Foot Flush |
| Shower Head | Shower Wand System - Height Adjustable |
| Shower Door | inTech Aluminum SureSeal Shower |
